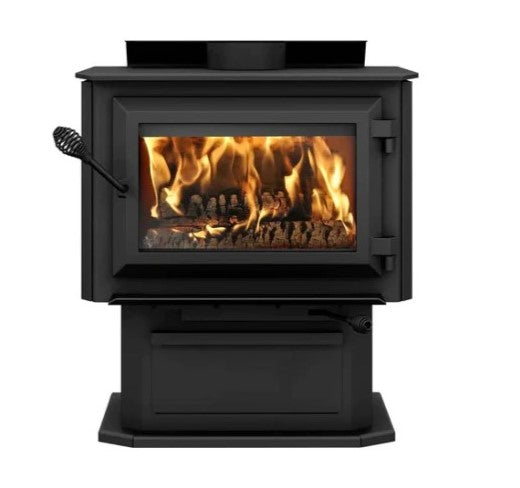

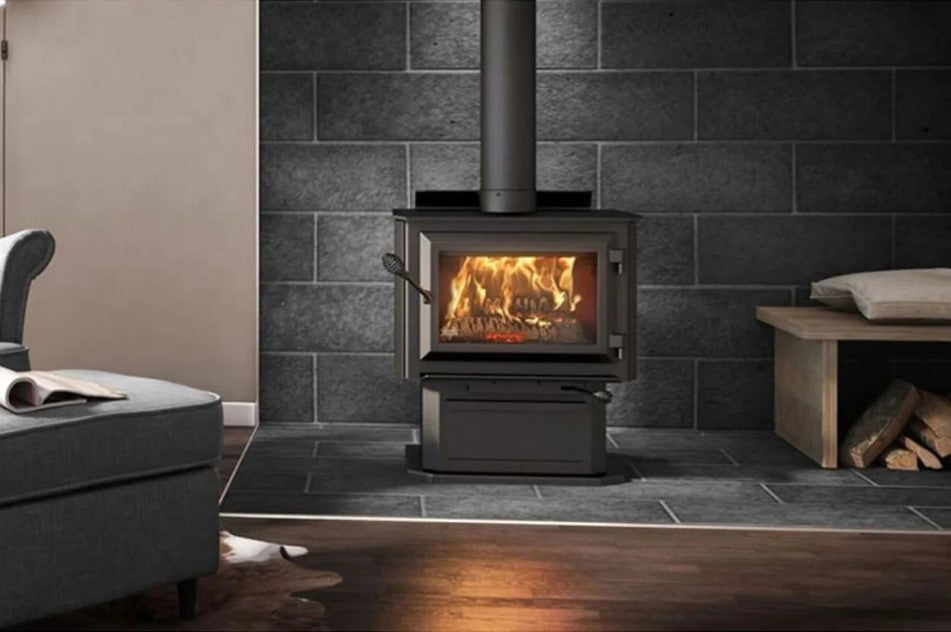

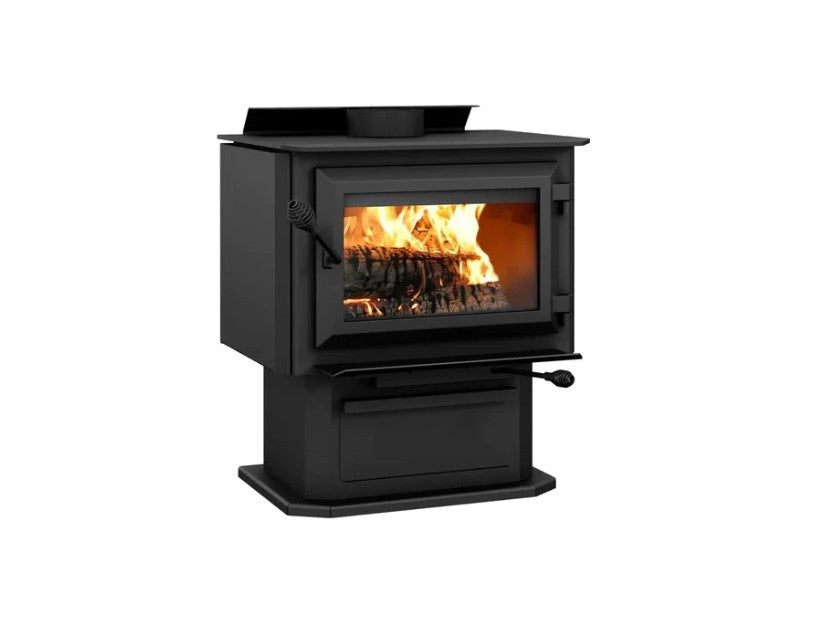

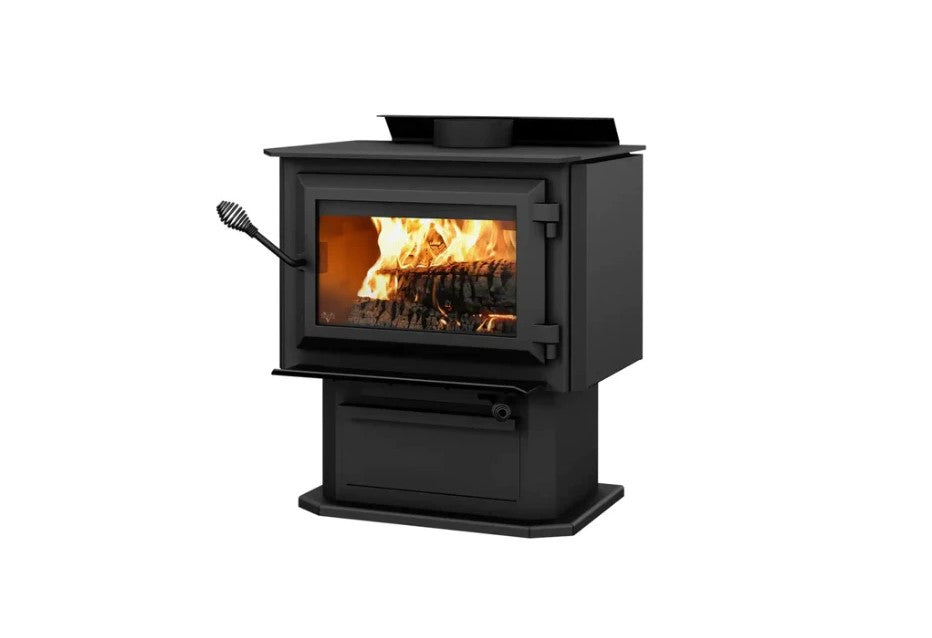

Ventis HES170 25" Wood Stove With Pedestal | Direct Vent | VB00013

The Ventis HES170 is a medium-sized wood-burning stove with a cast iron door, ideal for heating spaces from 500 to 1,800 sq. ft. It features a firebox lined with refractory bricks for efficient heat distribution and an optional fresh air intake, allowing for mobile home and alcove installations. Equipped with non-catalytic combustion technology, a top heat deflector, and side shields, the HES170 can burn for up to 6 hours and accommodate 18" logs. It is also EPA 2020 approved.

Key Details

• Firebox Capacity: 1.9 cu. ft. firebox for efficient heat retention and longer burn times

• Heating Capacity: Suitable for spaces between 850 to 1,800 sq. ft.

• Optimum Efficiency: Achieves a high efficiency rating of 78%

• Combustion Technology: Utilizes non-catalytic combustion for cleaner burning

• Heat Management Features: Includes a top heat deflector and side shields for better heat control

• Low Emissions: Emissions rated at 1.26 g/h, making it environmentally friendly

• Heat Output: Produces up to 65,000 BTU/hr with seasoned cord wood
• Optional Blower: 130 CFM blower to enhance the overall heating performance of the stove. The blower comes with a thermodisc that will turn the blower on when the stove gets up to temperature and will also turn the blower off once the stove has cooled down. You will not have to worry about hearing the blower, the fan is extremely quiet.
• Optional Rigid Fire Screen: Rigid Fire screen allows you to burn wood in the fireplace insert with the door open just like an old-time fireplace. Hear the crackle of the wood, watch the flames dance around in the firebox and relax around the wood insert on a cold winter's night. The Rigid Fire screen is easy to install and easy to remove when you are ready to load more wood. The fireplace insert should not be burning with the door open without the fire screen.

Appliance Performance

• Fuel Type: Dry cordwood (16" recommended)

• Recommended Heating Area: 500 - 1,800 ft²

• Firebox overall volume: 1.9 ft³

• EPA loading volume: 1.44 ft³

• Maximum burn time: 6 hours

• Maximum heat output (dry cordwood): 65,000 BTU/h

• Minimum heat output rate: 15,650 BTU/h (4.6 kW)

• Maximum heat output rate: 23,300 BTU/h (6.83 kW)

• Average efficiency (dry cordwood, HHV): 70%

• Average efficiency (dry cordwood, LHV): 75%

• Optimum efficiency: 78%

• Optimum heat transfer efficiency: 74%

• Average particulate emission rate: 1.26 g/h

• Average CO: 58 g/h

Specifications

• Maximum Log Length: 18"

• Shipping Weight: 328 lbs.

• Overall Dimensions (WxDxH): 24.8 x 22.7 x 29.5 in.
• Alcove installation: Yes

• Mobile home installation: Yes, with fresh air intake

• Certification: Certified by CAN/USA accredited laboratory

• Combustion Technology: Non-catalytic with a stainless-steel secondary-air system

• Flue outlet diameter: 6"

• Recommended chimney diameter: 6"

• Type: CAN/ULC S629, UL 103 HT (2100 °F)

• Minimum chimney height: 12'
• Door Type: Single, glass with cast iron frame

• Door Opening size (Width): 17 1/4"

• Door Opening size (Height): 8"

• Glass surface (W x H): 15 5/8" x 9 1/4"
• Firebox Size (Width): 19 5/8"

• Firebox Size (Height): 11 7/8"

• Firebox Size (Depth): 13 1/2"

• Log positioning: Loading over width

• Lined with refractory bricks: Yes

• Baffle type: High-quality vermiculite

• High-Efficiency Certification: EPA 2020 certified

• USA Standard (emissions): EPA

• USA Standard (safety): UL 1482, UL 737

• Steel Body Thickness: 3/16"

• Steel Top Thickness: 5/16"
